Functional introduction

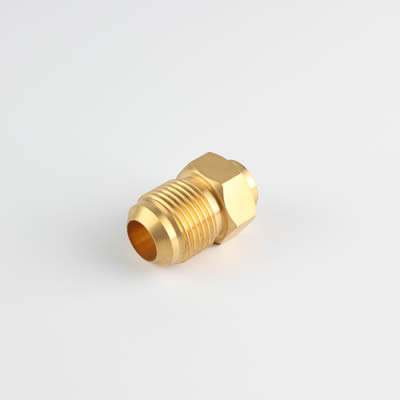

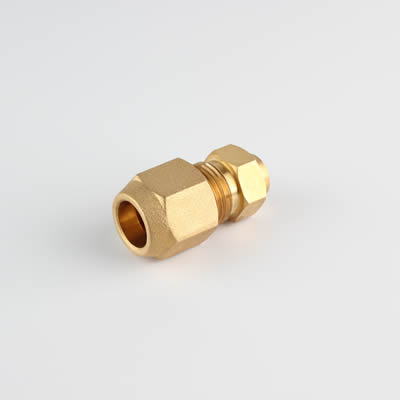

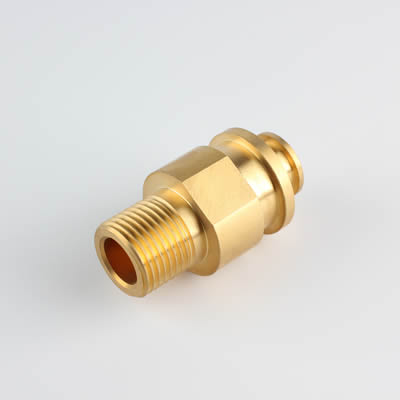

It is used for the connection between the copper pipe trumpet mouth and the joint, and plays the role of connecting the whole pipeline system and sealing.
Product characteristics
Used to connect copper tube trumpet mouth and joint.
Strong versatility and easy to use.
Suitable for different fluoride refrigerants.
Applicable range
Applicable refrigerants: R134a, R22, R407c, R410a, R32, etc.
Maximum work pressure: 4.2MPa.
Suitable fluid temperature:-30 ℃ ~ + 120 ℃.

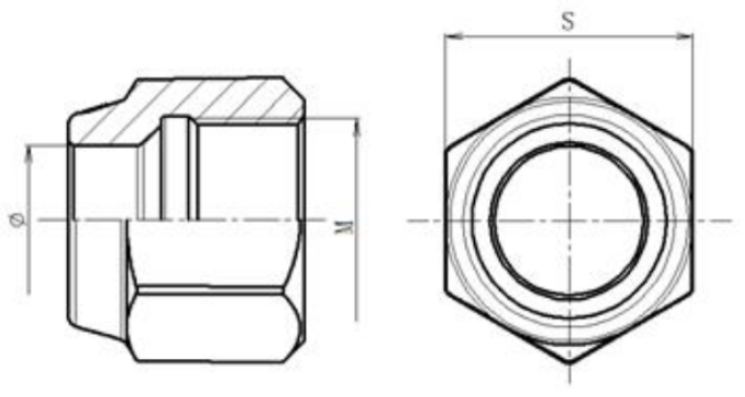

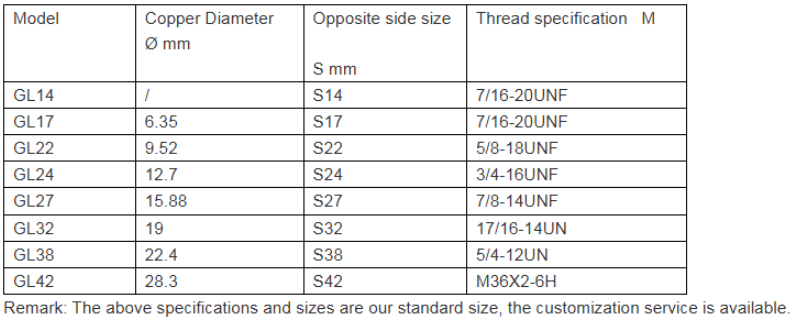

Technical Parameters
