产品详情
Capillary series
Functional introduction

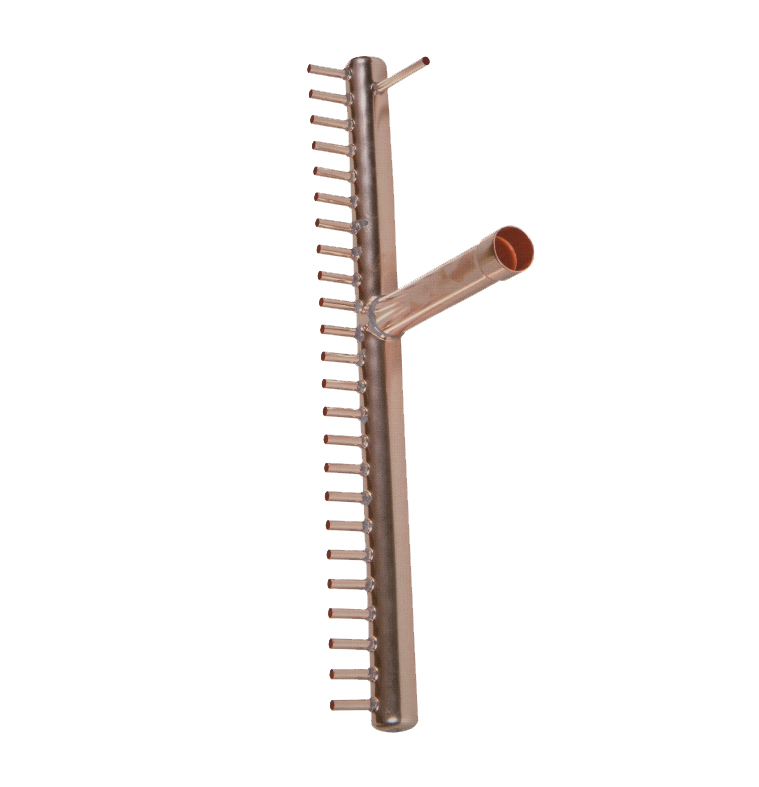

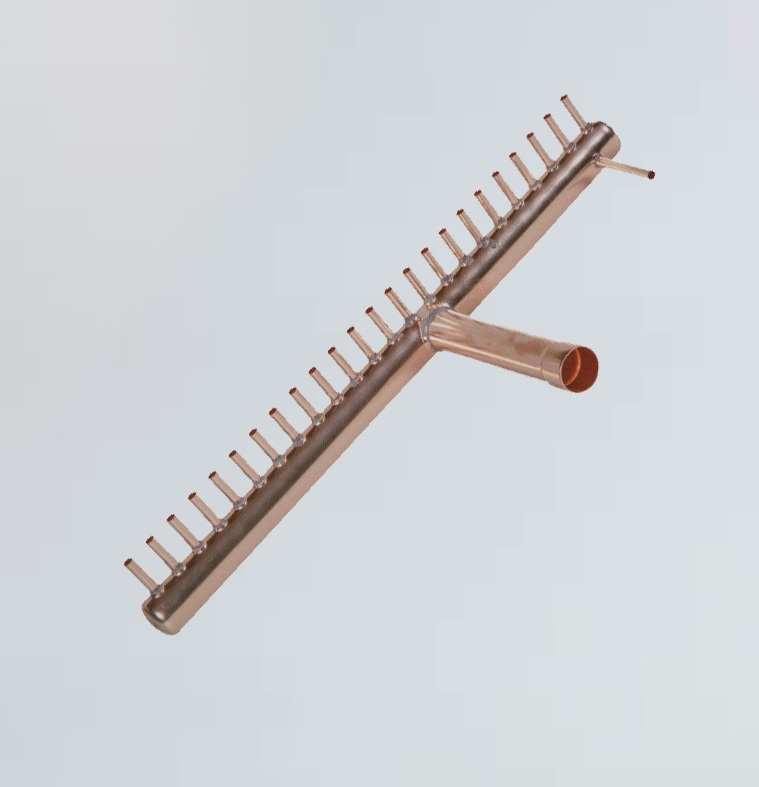

Copper pipe assemblies series is an important part of internal and external compressor of frequency conversion air conditioner, which provides flow channel for refrigerant.
Product characteristics
It is welded with silver solder, which is suitable for different fluoride refrigerants.
All products are tested for air tightness to ensure no leakage and blockage.
Applicable range
Applicable refrigerants: R134a, R22, R407c, R410a, R32, etc.
Maximum work pressure: 4.2MPa.
Suitable fluid temperature:-30 ℃ ~ + 120 ℃.

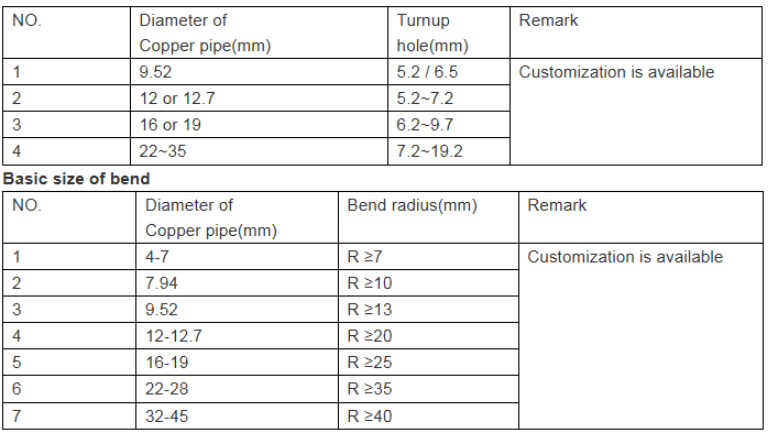

Basic size of Turnup
