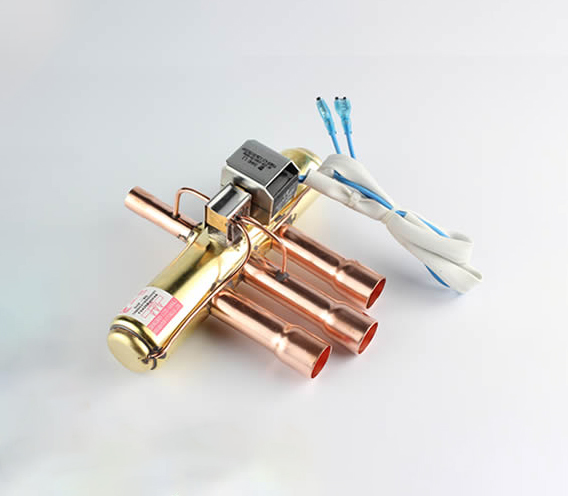

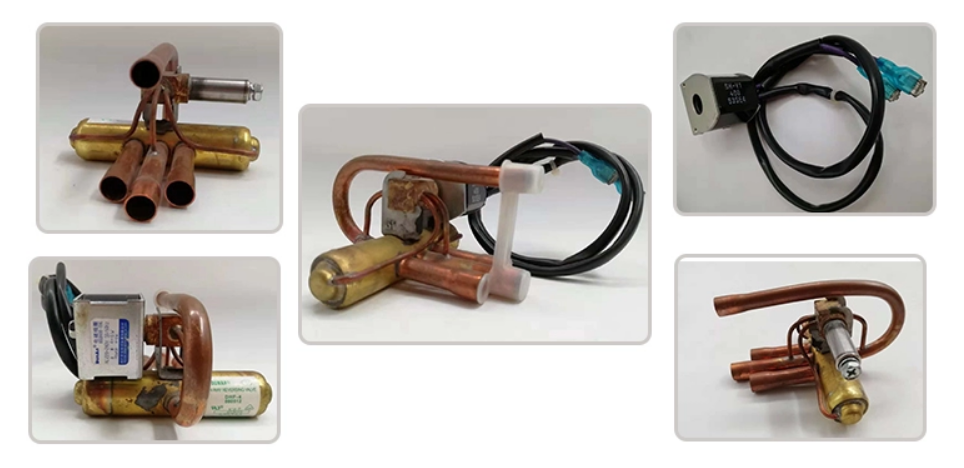

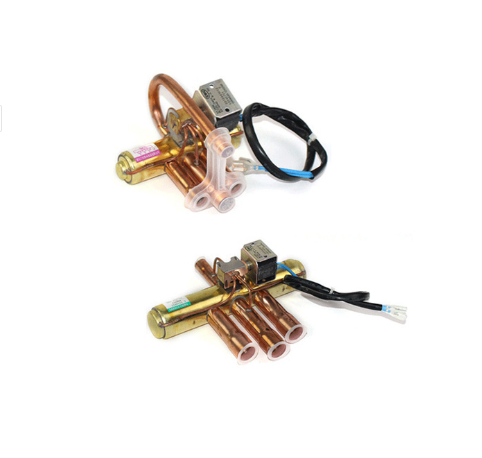

4 Way Reversing Valve
Functional introduction
SHF series brass four-way valves are suitable for central, split, window and other heat pump systems.
The conversion of refrigeration and heating mode is realized by switching the circulation path of refrigeration medium.
Product characteristics
The pilot valve is used to control the main valve, and the reversing is reliable.
It can change direction instantly and work under the minimum pressure difference to minimize the pressure drop and internal leakage through the four-way valve.
During the operation of the four -way valve, the flow area is reasonable, the change of fluid steering in the valve is small, and the flow is short, which is good to reduce the fluid resistance and improve the cooling capacity and energy efficiency of the system.
The product has long service life and wide coverage.
Applicable range:
Suitable for refrigeration media: R22, R407C, R410a, R32, etc.
Suitable medium temperature:-30 ℃ ~ + 120 ℃.
Suitable ambient temperature:-30 ℃ ~ + 70 ℃.
Relative humidity: below 95%RH.

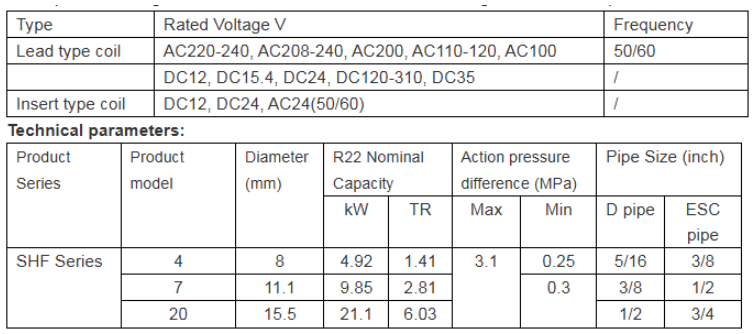

Coil parameters:
Description: the length of lead wire can be tailor-made according to customer requirements.
